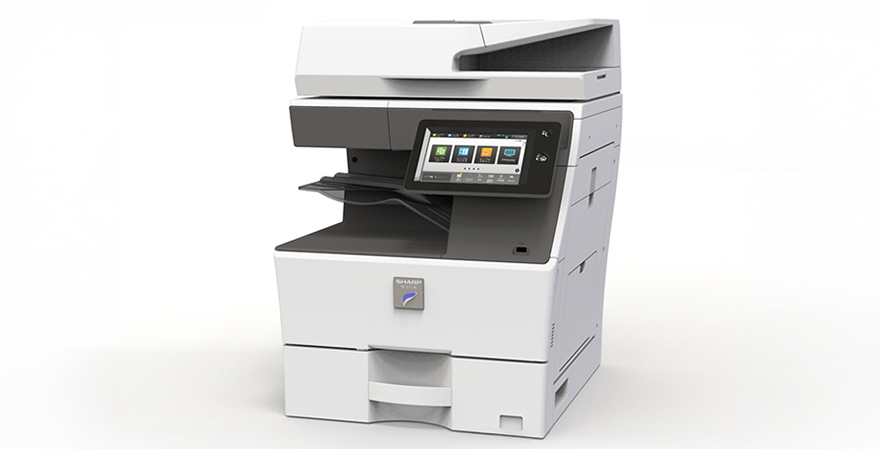

A4モノクロ複合機MX-B455W

Product DesignYukio Kanaoka
  • A4モノクロ複合機
  • A4モノクロ複合機

CoolなA4複合機を

A Cool A4 MFP

北米をメインターゲットとしたA4複合機。北米ではA4より少し大きなリーガルサイズという独自の用紙サイズが主流です。この規格のため最上部のスキャナーが本体よりも幅が広くなり、重心の高いアンバランスな造形になってしまいます。これをデザインで解決するため辿り着いたのが、スキャナーから最下部の用紙カセットまでを曲面で繋ぐことでした。

The main target of this A4 multifunction printer (MFP) is North America. In North America, legal-size paper, which is a size that is slightly larger than A4, is popular. Due to this specification, the scanner at the very top becomes wider than the body of the unit, creating an unbalanced structure with a high center of gravity. The solution that I finally reached through design was to unify the unit from the scanner down to the paper tray at the very bottom with curved sides.



しかし、この曲面は、ほんの少しの曲率の度合いで見え方が大きく変化するため、形状が歪んで見えたり、ボディー全体が後ろへ傾いて見えるといった錯覚が生じました。また、設計においても難易度の高い技術的課題が発生。この、デザイン的課題と技術的課題を解決する「ちょうど良い曲率」を探し当てるのが一番大変でした。その苦労の甲斐あって、北米市場ではCoolデザインとして好評を得ています。(2019年度 iF DESIGN AWARDを受賞しました!)

Even slight curvature variations greatly changed the appearance of these curved sides, however, resulting in optical illusions, including making the form seem bent and causing the entire device to look like it was tilting backward. Very difficult engineering challenges also arose with the design. Finding “just the right curvature” to solve these design and engineering issues was the most difficult. Those struggles paid off, though, when the product was praised in the North American market for its “cool” design. (This MFP received a 2019 iF DESIGN AWARD ! )



週末は、行き当たりばったりの気ままな車旅をしています。今話題の展覧会を観に行こう!などと朝から意気込んで出かけるのですが、寄り道に夢中で到着が午後過ぎになることも…。駆け足で観た後は、のんびり近くの山やキャンプ場で車中泊や温泉を楽しんでいます。

On weekends, I take carefree car trips, going wherever my heart leads me. Sometimes I head out in the morning with “Let’s go see the exhibition everyone is talking about now!” or something like that in mind. Then, I get caught up in side trips and do not arrive until after noon… After rushing through the show, I enjoy taking my time at a nearby mountain or campsite, sleeping in my car or visiting a hot spring.



※内容は記事作成当時のものです。

製品情報:
複合機公式サイト
シャープ公式ニュースリリース

Product Design

金岡 幸雄

Yukio Kanaoka

金岡 幸雄

Product designer 1990年入社
